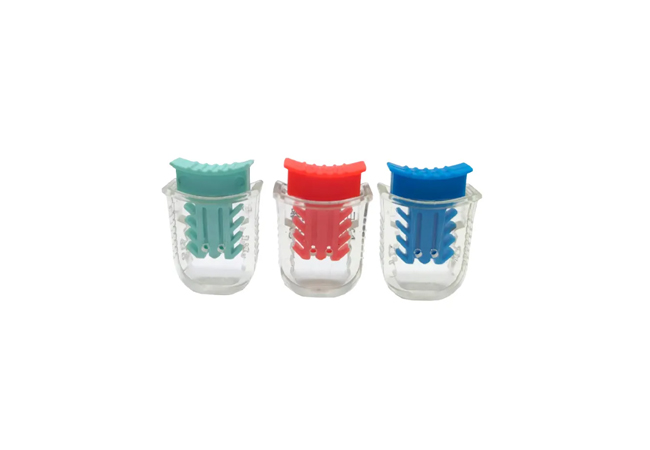

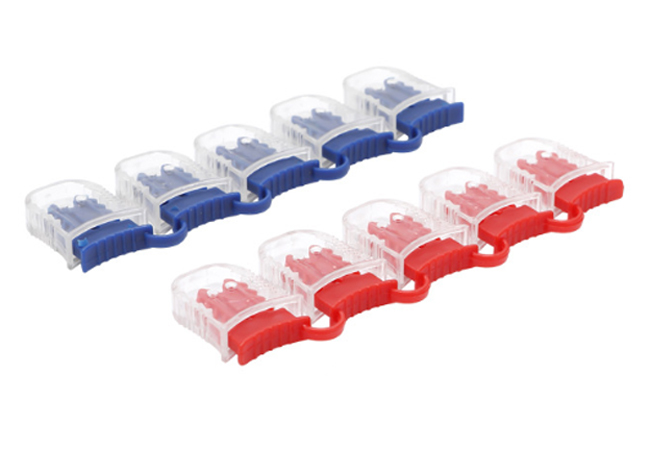

Electric Meter Seal-PMS05
High-Strength ABS + Polycarbonate Plastic seals, Combines durability with environmental safety (non-toxic, odorless).
Extreme Environment Resistance – Withstands high/low temperatures, acids, and corrosion for long-term reliability.
Benefit Of Electric Meter Seal
Enhanced Security Design:
Thickened Lock Core – Reinforced for maximum resistance to forced entry.
One-Time Press Lock Mechanism – Locks permanently upon installation, ensuring tamper-evident protection.
Features:
Meets international security standards for tamper-evident seals.
Operating Temp Range: -40°C to +85°C
Compliance: ISO 17712; GOST R 53424–2018.
ASTM F2824-10(2020), DIN EN 16882:2017-06
Applications:
Ideal Applications:
✔ Utility meter sealing (electric/water/gas)
✔ Wire & cable security
✔ Transportation & logistics tamper-proofing
✔ Industrial equipment safeguarding

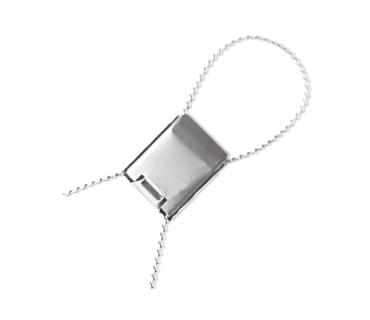

Other Type Meter Seals For You Choose:
- Data Sheet

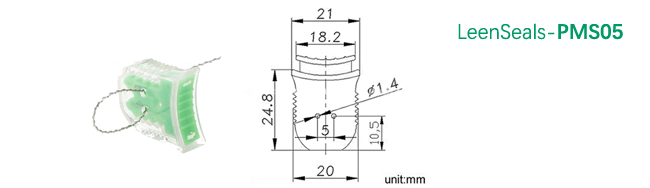

- Drawing
| Model | PMS05 |
| Performance | Electric Meter Seal |
| Materials | ABS+polycarbonate |
| Seal Type | Plastic Seal Metering Seal |
| Packing | 1000 pcs/box |
| G.W. | 3.5KGS/box |

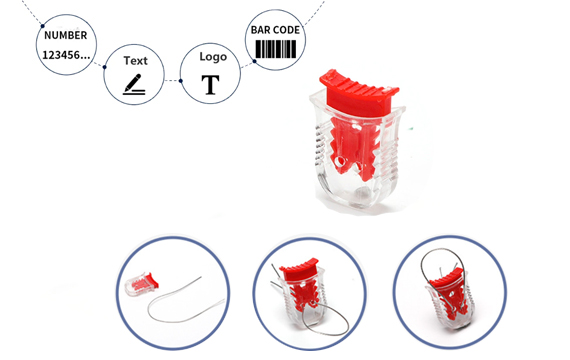

| Identification | Logo/ Text/ Number/Bar code |
Core Functions of Electric Meter Seals:
Tamper Evidence: Visible breakage alerts utilities to unauthorized access.
Fraud Prevention: Deters electricity theft (meter tampering/bypassing).
Legal Compliance: Provides proof for billing disputes or regulatory audits.
Asset Protection: Secures public utility meters from vandalism or environmental damage.
We can offer you custom security solutions: Offer tailored electric meter seals (e.g., barcodes for utilities with digital tracking).
Material: ABS+Polycarbonate resists cutting, chemicals, and extreme weather.
Design: One-time locking mechanism leaves clear tamper evidence.
Compliance: Meet standards ISO 17712; GOST R 53424–2018, ASTM F2824, DIN EN 16882:2017-06 for security needs.
Our electric meter seals help a Brazilian power company reduced fraud.reduced revenue loss by 23% after switching to serialized polycarbonate security seals, making tampering traceable.
We have professional problem-solving capabilities, consult us now!
